Payment Type: L/C,T/T,D/P
Min. Order: 500 Kilogram
Delivery Time: 15 Days

Basic Info


Certification: CSA, pcoc, Reach, IECEE, scoc, UL, EPA, GS

place of origin: China

Craft: Forged

Connection method: Welding

shape: Equal, Reducing

Support customization: OEM

Additional Info


Productivity: 100000tons /year

Brand: GH

Transportation: Ocean,Land,Air

Place of Origin: CN

Supply Ability: 100T/week

Certificate: CE/PED 2014/68/EU ,AD2000W0 ASME PP&U

HS Code: 7307910000 /7307210000


Product Description

He Bei GuangHao Pipe Fittings Co .,LTD Specializing in the production of steel pipe and pipe fittings
Main production:Heat Preservation Anticorrosive Pipe,Seamless Pipe,ERW/HFW Steel Pipe,LSAW STEEL PIPE,Spiral Tube,
Buttweld Steel Pipe Fittings,Industrial Flanges,Steel Pipes,Buttweld  Elbows,Buttwel Tees,Forged fittings,etc.
Welcome to discuss

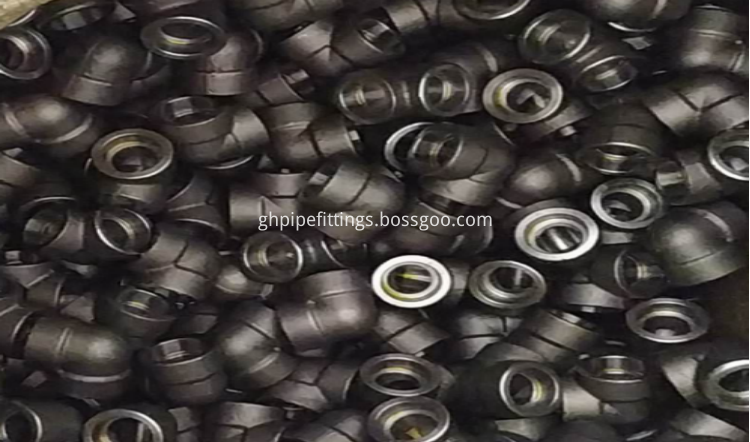

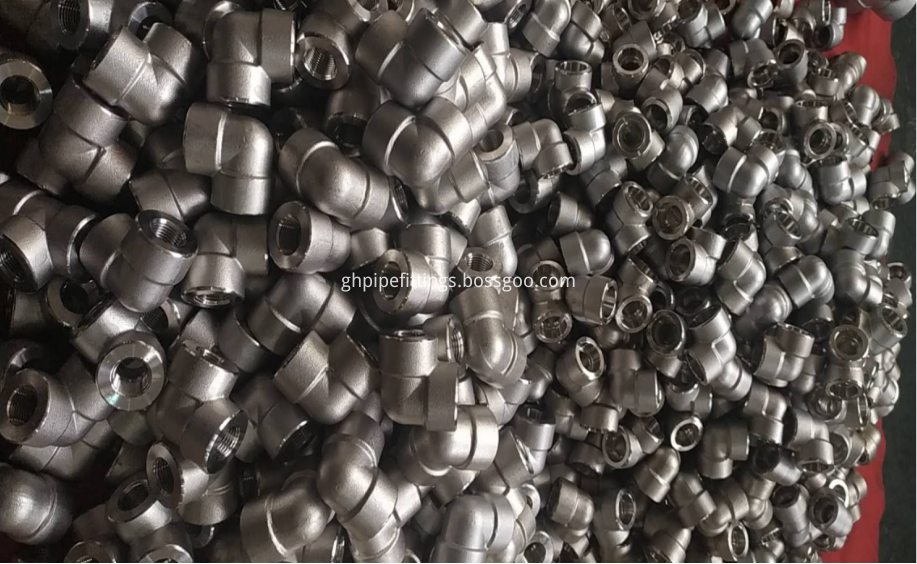

 Forged Fittings/Buttweld Steel Pipe Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc.1596960522 11596960838 1

Specification of ASTM A105 socket weld elbows:

Size: 1/8″-4″,DN8-DN100

Wall Thickness: SCH 10,SCH 40,SCH 80,SCH 160,XS,XXS

Pressure: Class 3000,Class 6000,Class 9000

Connection Method: socket welding

Production standards for ASTM A105 socket weld elbows:

ASME standard is very popular overseas,and ASME B16.11 is served for forged steel pipe fittings.But there are many other standards are available such as BS 3799,JIS b2316.

Coating of ASTM A105 socket weld elbows:

We manufacture ASTM A105 socket weld elbows with different coating such as black,yellow paint,varnish,anti-rust oil,galvanized,or as for clients’requirements.

Packing of ASTM A105 socket weld elbows:

We packed the products with wooden case,plywood case,pallet,or as for clients’ requirements.

Application of ASTM A105 socket weld elbows:

The ASTM A105 socket weld elbows are widely used in industry field,like oil,gas,power plant,water treatment,chemical-industry etc.

Chemical Composition of ASTM A105 socket weld elbows:

For each reduction of 0.01% below the specified carbon maximum(0.35%),an increase of 0.06% manganese above the specified maximum(1.05%) will be permitted up to a maximum of 1.65%.

Element C Mn P S Si Cu Ni Cr Mo V
Composition,% 0.35,max 0.6-1.05 0.035,max 0.04o,max 0.10-0.35 0.40,max 0.4,max 0.3,max 0.12,max 0.08,max

The sum of copper,nickel,molybdenum and vanadium shall not exceed 1.00%

The sum of chromium and molybdenum shall not exceed 0.32%.

Mechanical Properties of ASTM A105 socket weld elbows:

Tensile Strength,min,ksi[Mpa] Yield Strength,min,ksi[Mpa] Elongation
70,[485] 36,[250] 30 (%)
