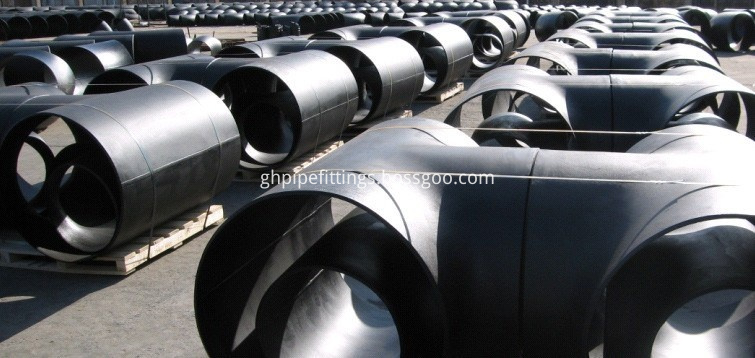

Lower Temperature Material ASTM A420 Wpl6 Tee

Unit Price: USD 50.0000 / Piece/Pieces
Min. Order: 1 Piece/Pieces

Basic Info

Model No.: 1/2''-48''

Certification: CSA, pcoc, Reach, IECEE, scoc, UL, EPA, GS, BS

place of origin: China

Craft: Forged

Connection method: Welding

shape: Reducing, Equal

Head Code: Round

Connection: Welding

Shape: Other

Material: Alloy

Technics: Forged

Special Function: High Voltage

Application: Buliding

Additional Info

Packaging: Wooden case / tray

Productivity: 500000 Tons

Brand: Guang Hao

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 500000 Tons

Certificate: IS0/API/PED/CE

HS Code: 7307920000

Port: Tianjin Port,Shanghai Port

Product Description

He Bei GuangHao Pipe Fittings Co .,LTD Specializing in the production of steel pipe and pipe fittings
Main production:Heat Preservation Anticorrosive Pipe,Seamless Pipe,ERW/HFW Steel Pipe,LSAW STEEL PIPE,Spiral Tube,
Buttweld Steel Pipe Fittings,Industrial Flanges,Steel Pipes,Buttweld  Elbows,Buttwel Tees,Forged fittings,etc.
Welcome to discuss

 Forged Fittings/Buttweld Steel Pipe Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc.


ASME SA 420 Grade WPL 6 Specification

ASME SA 420 Grade WPL 6 Carbon Steel Seamless Pipes are Medium Carbon Steel Pipes with max 0.30 % carbon content with combination of 0.60 – 1.35 % manganese. These Pipes are most commonly used for general purpose applications worldwide. ASME SA 420 Grade WPL 6 Pipes are ductile and strong Pipes with long wearing properties. These Pipes are manufactured as per ASME Specification and commercially referred as carbon steel Pipes.

ASME SA 420 Grade WPL 6 Properties


Chemical Properties
Carbon Silicon Manganese Phosphorous Sulphur Molybdenum Nickel Chromium Copper Others
max 0.30 0.15 – 0.30 0.60 – 1.35 0.035 0.03 max 0.12 max 0.40 max 0.30 max 0.40 V min 0.05

Mechanical Properties
Yield Strength Tensile Strength Elongation A5 min
MPa min ksi min MPa min MPa min ksi min Percentage
415 585 60 30
Equivalent Designation
EN P265NL Grade 10217-6 ASTM A420 WPL6 ASME SA 420 WPL 6 UNI C20
