DIN EN1092-1 Thread Flanges

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW,FCA
Min. Order:	500 Kilogram
Delivery Time:	15 Days

Basic Info

Model No.: 1/2"~48"(Dn15~Dn1200)

Certification: CSA, pcoc, Reach, IECEE, scoc, UL, EPA, GS

place of origin: China

Craft: Forged

Connection method: Female

shape: Equal

Additional Info

Packaging: PALLETS/WOODEN CASE

Productivity: 100000tons /year

Brand: GH

Transportation: Ocean,Land,Air

Place of Origin: CN

Supply Ability: 100T/week

Certificate: CE/PED 2014/68/EU ,AD2000W0 ASME PP&U

HS Code: 7307910000 /7307210000

Port: TIANJIN,QINGDAO

Product Description

Product Type:
        Weld Neck Flange, Slip On Flange, Socket Welding Flange, Lap Joint Flange, Threaded Flange
        Blind Flange/Blind, Orifice Flange, Integral Pipe Flange, Reducing Flange, Pad Type Flange,
        Loose Hubbed Flange, Welding Plate Flange, Weldoflange, Nipoflange, Welding Neck Collar,
        Welding-on Collar

7cc7cb2a98231a417f8e28501d1c461a_2014314114443

Product Name	THREAD flange
Standard	ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type	ASTM:Slip on welding flange
Materials	Stainless steel:ASTM/ASMES/A182F304 \| F304L \|F304H \| F316 \| F316L \| F321 \| F321H \| F347 \|31Ti 309S \|310S \| 405 \|409 \|410 \| 410S \| 416 \| 420 \| 430 \| 630 \| 660 \| 254SMO \| 253MA \| 353MA Nickel Alloy: ASTM/ASME S/B366 UNS N08020\| N04400\|N06600\| N06625\| N08800\| N08810\|N08825\| N10276\|N10665\|N10675\|Incoloy 800 \| Incoloy 800H \| Incoloy 800HT \| Incoloy 825 \| Incoloy 901 \| Incoloy 925 \| Incoloy 926, Inconel 600 \| Inconel 601 \| Inconel 625 \| Inconel 706 \| Inconel 718 \| Inconel X-750, Monel 400 \| Monel 401 \| Monel R 405 \| Monel K 500 Copper nickel:The main material is 90/10 Copper Nickel , 70/30 Copper Nickel. Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317LS32750 \| S32760 Hastelloy:HastelloyB \| HastelloyB-2 \| HastelloyB-3 \| HastelloyC-4 \| Hastelloy C-22 \| Hastelloy C-276 \| Hastelloy X \|Hastelloy G \| Hastelloy G3 Nimonic: Nimonic 75 \| Nimonic 80A \| Nimonic 90 Duplex Steel: ASTM A182 F51 \| F53 \| F55, S32101 \| S32205\|S31803 \| S32304 Alloy Steel: ASTM/ASME S/ A182 F11 \| F12 \| F22 \| F5 \| F9 \| F91 Ti alloy:ASTM R50250/GR.1 \| R50400/GR.2 \| R50550/GR.3 \| R50700/GR.4 \| GR.6 \|R52400/GR.7 \| R53400/GR.12 \| R56320/GR.9 \|R56400/GR.5 Carbon steel: A105 A350 A694(F52 F56 F60 F65 F70 F80)
Marking	Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

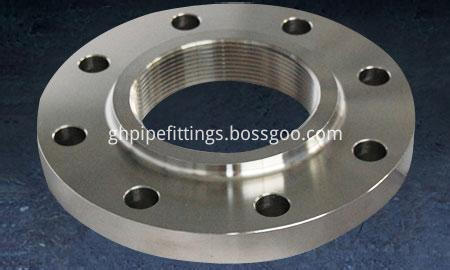

Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe.

This type of joint connection is Speedy and simple but not suitable for high presser and temperature applications. Threaded Flanges are mostly used in utility services such as air and water.

Threaded (Screwed) flange is similar to the Slip-On flange, but the bore is threaded. Its chief merit is that it can be assembled withour welding, explaining its use in low pressure services at ordinary atmospheric temperatures, and in highly explosive areas where welding create a hazard.

Screwed Flanges

The various types of threaded flanges are as follows:

Plain Threaded Flanges
Female Threaded Flanges
Male Threaded Flanges

Standards, Dimensions & Weight of Threaded flangesThreaded Flanges can be used in very high pressure services and their major advantage is that they can be assembled without welding.

ASME/ANSI B16.5 Class 150 TH

ASME/ANSI B16.5 Class 300 TH

ASME/ANSI B16.5 Class 600 TH
ASME/ANSI B16.5 Class 900 TH
DIN 2565 PN6
DIN 2566 PN10

EN1092 1 THREAD FLANGE DIN THREAD FLANGE ASTM B16.5 THREAD FLANGE
